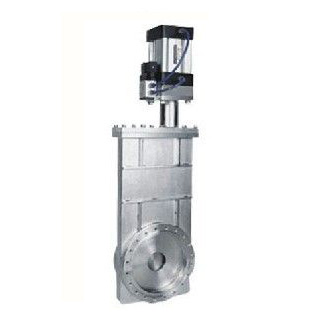

CCQ型氣動超高真空插板閥是通過電磁換向閥改變氣路方向，控製執行氣缸驅動閥板作上下運動，達到閥門的開啟或關閉。閥門用於接通或切斷真空管路中的氣流。適用介質為純淨空氣和非腐蝕性氣體。
帶反饋信號裝置。 |
|
| |
| ■ |
CCQ
Pneumatic Ultra-high Vacuum Gate Valve |
| |
| |
■ |
CCQ pneumatic ultra-high vacuum gate valve uses solenoid directional valve to change the direction of air passage, and controls the actuating cylinder to drive the valve disc up and down to make the valve opened or closed. It is used to put through or cut off the air passage in vacuum pipeline. Applicable medium can be pure air and noncorrosive gases.
With signal feedback device. |
|
| |
| ■ |
CCQ氣動超高真空插板閥主要技術性能
Main Technical Performance |
| |
| |
■
■
■ |
| 適用範圍：Applicability |
105～1.3×10-7Pa |
| 閥門漏率：Valve Leak Rate |
≤1.3×10-7Pa.L/S.(DN≤200)
≤6.7×10-7Pa.L/S.(DN≥250) |
| 適用溫度：Applicable Temperature |
-30～+150℃ |
閥門開啟時閥板兩側的壓差：
The differential pressure between the two sides of valve disc upon valve opening: |
≤2.7×103Pa. |
| 氣源壓力：Annoy pressure |
0.4～0.6MPa |
|
|
| |
| ■ |
高真空插板閥主要零件材料
Materials of Main Parts |
| |
| |
■
■ |
閥體、閥板：不鏽鋼
密封件：氟橡膠、波紋管(軸封)、丁腈橡膠。
Body, and disc: stainless steel
Sealing element: Viton, bellows(shaft seal), NBR |
|
| |
| CONSTRUCTION FIGHTS(mm) |
| |
| ■ |
高真空插板閥外形及連接尺寸
Overall and Connection Dimensions(mm) |
|
|
|
|
Model
型號
|
DN
|
A
|
H
|
D
|
Do
|
D1
|
D2
|
D3
|
L
|
L1
|
G
|
E
|
n-d
|
法蘭標準
|
|
CCQ-50
|
50
|
60
|
92
|
89
|
72.4
|
61.6
|
55.6
|
|
515
|
153
|
220
|
65
|
8-M8
|
GB6071
|
|
CCQ-63
|
63
|
65
|
105
|
114
|
92.1
|
82.6
|
76.6
|
|
566
|
180
|
220
|
80
|
8-M8
|
|
CCQ-80
|
80
|
65
|
130
|
130
|
110
|
99
|
93
|
|
603
|
200
|
220
|
80
|
16-M8
|
|
CCQ-100
|
100
|
70
|
152
|
152
|
130.2
|
120.7
|
114.7
|
|
653
|
267
|
220
|
95
|
16-M8
|
|
CCQ-150
|
150
|
70
|
202
|
202
|
181
|
171.5
|
165.5
|
|
771
|
350
|
270
|
95
|
20-M8
|
|
CCQ-200
|
200
|
80
|
251
|
253
|
231.8
|
222.3
|
216.6
|
|
889
|
424
|
270
|
115
|
24-M8
|
|
CCQ-250
|
250
|
85
|
300
|
314
|
288
|
308
|
275
|
271
|
1127
|
574
|
350
|
140
|
24-M10
|
JB5278
|
|
CCQ-300
|
300
|
85
|
352
|
365
|
338
|
353
|
323
|
318
|
1197
|
613
|
420
|
140
|
32-M10
|
|
|
CCQ-320
|
320
|
85
|
372
|
385
|
357
|
379
|
344
|
340
|
1197
|
613
|
440
|
140
|
36-M10
|
JB5278
|
|
CCQ-400
|
400
|
110
|
456
|
497
|
454
|
480
|
440
|
436
|
1666
|
810
|
536
|
180
|
36-M12
|
|
CCQ-500
|
500
|
135
|
595
|
590
|
555
|
580
|
540
|
536
|
1835
|
870
|
640
|
220
|
40-M12
|
|
CCQ-630
|
630
|
135
|
690
|
700
|
658
|
680
|
639
|
635
|
1930
|
960
|
780
|
280
|
40-M16
|
|
CCQ-800
|
800
|
150
|
880
|
890
|
855
|
880
|
835
|
831
|
2200
|
1100
|
950
|
350
|
60-M16
|
|
